Structure and Function of Nucleic Acid Regulatory Complexes

Research Summary

Leemor Joshua-Tor studies the protein components of the RNAi machinery in cells, which can selectively silence genes, as well as complexes involved in DNA replication.

My research program reflects my long-standing interest in nucleic acid regulatory processes. Trained as a chemist, I was initially drawn to nucleic acid chemistry and structure. Soon my focus broadened to the regulation of nucleic acid function and, in particular, the protein–nucleic acid complexes at the center of many basic life processes, such as replication and gene expression. I have been especially attracted to areas that present unique mechanistic challenges, though often of clinical relevance. Deciphering the mechanisms that underlie double-stranded RNA gene silencing is a major effort in my laboratory. Another is to obtain a molecular view of the initiation of DNA replication and how the proteins involved manipulate DNA.

The emergence of a new pathway for gene regulation, namely RNA interference (RNAi), sparked my interest. I was struck by how genetics, biochemistry, molecular biology, and bioinformatics were being used to understand this new paradigm in gene regulation. I wanted to add structural biology to the mix, moving the mechanistic descriptions beyond the "blobology" that depicted the various factors involved as blobs devoid of the molecular, chemical, and mechanistic features that might explain how they work in the various RNAi-related pathways.

RNAi is triggered by double-stranded (ds) RNA to elicit gene silencing. Similar components in all RNAi-related pathways appear to suppress gene expression through mRNA degradation, translational repression, or changes in chromatin structure. The best-characterized pathway is post-transcriptional gene silencing (PTGS) mediated by "slicing." Here, the RNA-induced silencing complex (RISC) produces an endonucleolytic cut in the mRNA target, preventing gene expression from proceeding.

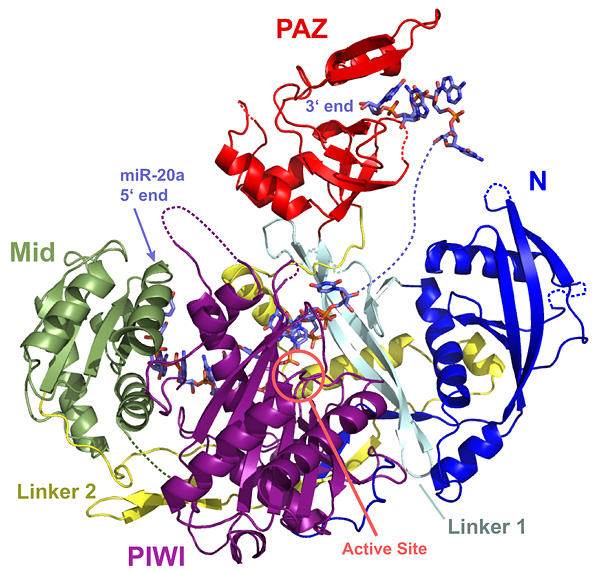

Figure 1: Structure of human Argonaute-2 in complex with miR-20a...

We targeted Argonaute, the signature component of RISC, because it is involved in all RNAi-related processes. It was also the most mysterious component; nothing was known, except that it contained two conserved but uncharacterized domains: PAZ and PIWI. We initially solved the structure of the PAZ domain. Considering this along with results of biochemical studies, we proposed that the PAZ domain has a role in siRNA 3'-end recognition, which was subsequently confirmed by others in the field.

But it was our structure of a full-length Argonaute protein from an archaebacterium that instantly solved a long-standing puzzle in the RNAi field. We saw at once that Argonaute was the long-sought Slicer, which performs the critical slicing event—cleavage of the mRNA. This revelation arose from the fact that the PIWI domain looks very much like an RNase H enzyme, consistent with the biochemistry of the slicing reaction. We demonstrated that a large, positively charged groove along the protein could accommodate siRNA and substrate (mRNA), with the scissile phosphate at the active site. We then turned to Gregory Hannon (HHMI, Cold Spring Harbor Laboratory), who had just shown that only immunoprecipitations of human Argonaute-2 (hAgo2), but not the other human Argonautes, contain slicer activity. Together we mutated the key aspartates identified at the active site to alanine; this abolished slicing, showing hAgo2 to be the catalytic engine of RNAi. This is a clear case of structural biology identifying the critical role of a key protein in an important biological pathway.

Understanding how Argonaute-family proteins function in RNAi processes transcends the basic biochemistry at the active site of the enzyme. While some Argonautes that have an intact set of active-site residues are fully active Slicers, some are not. For example, hAgo2 uses its slicing activity for its function through siRNAs, but when mediating miRNA silencing it does not. What makes an Argonaute protein function as Slicer? How is this activity regulated? How do proteins that appear to be so similar in their basic structure work in diverse aspects of gene silencing? We are addressing these questions with a close look at the various functional Argonaute proteins, including the Piwi subfamily, along with studies on the biogenesis of some small RNAs. An unexpected challenge in the field was to obtain RNA-free enzyme. Having done that, we are able to probe into the activities of Argonaute proteins and examine their structures with almost any loaded RNA of our choice (Figure 1).

RNAi-mediated transcriptional gene silencing (TGS) directed toward heterochromatin establishment and maintenance is another area of intense effort in my lab. We set out to understand the function of complexes involved in TGS, the role of their components, and the mechanism underlying heterochromatization. The fission yeast Schizosaccharomyces pombe is the best-characterized system to study TGS because the protein complexes involved are well defined. It is also easy to translate structural, biochemical, and biophysical findings to in vivo studies. Silencing is dependent on several multiprotein complexes. RITS (RNA-induced transcriptional silencing complex), a specialized RISC complex, consists of the Argonaute protein, Ago1; the chromodomain-containing protein Chp1; the novel protein Tas3; and siRNA. We asked whether slicing activity is important for TGS, given that Ago1 is the sole Argonaute protein in S. pombe. Together with my colleague Robert Martienssen (HHMI, Cold Spring Harbor Laboratory), we showed that Ago1 is an active Slicer in vitro and that slicing is required for TGS. With Janet Partridge of St. Jude Children's Research Hospital we showed that Chp1 has an unusually high affinity for a particularly important heterochromatin mark and that Chp1's tight embrace of Tas3 forms a bridge between the RNAi machinery and the recognition and placement of heterochromatin marks that bring about silencing. The structure of the Chp1-Tas3 complex also revealed the presence of a PIN domain at the C terminus of Chp1, which contributes to post-transcriptional gene silencing of subtelomeric transcripts independently of RNAi.

The Argonautes, named for the squid-like appearance of the Arabidopsis Ago1 mutant, are central to all RNAi pathways and are stretching their tentacles into diverse forms of gene silencing. Our Ago-centric approach is enabling us to reveal some of the biochemical mechanisms underlying these pathways. Since we are addressing these mechanisms across broad biological systems, we have the opportunity to understand the evolution of this mechanism, particularly the intrinsic catalytic activity and its involvement in diverse silencing pathways.

Our aim in these studies is to dissect, decipher, and study the evolution of the intricate mechanisms underlying these fundamental biological processes.

Grants from the National Institutes of Health provided partial support for these projects.

As of September 17, 2012
