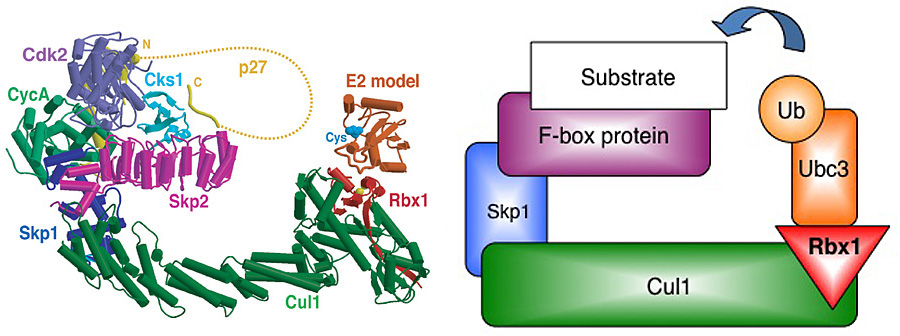

Figure 1: Mechanism of catalysis by the SCFSkp2 complex. The figure shows a model of the SCFSkp2-Cks1-p27-Cdk2-CycA (cyclin A) complex (built in collaboration with the lab of Nikola Pavletich [HHMI, Memorial Sloan-Kettering Cancer Center]). Also shown is the model of a docked ubiquitin-conjugating enzyme (E2, orange) and its active-site cysteine (Cys, cyan). The middle region of p27 (residues 94–180), for which no structural information exists, is shown as a dashed line. In this model, the Skp2 leucine-rich repeat domain and the E2 are on the same side of the SCF complex. This SCF architecture suggests that the Cul1 subunit evolved as a long stalk to separate the substrate binding and the catalytic activities, allowing the accommodation of a range of substrate sizes and their different spacing between SCF-binding and ubiquitylation sites.
Left panel, from Hao, B., Zheng, N., Schulman, B.A., Wu, G., Miller, J.J., Pagano, M., and Pavletich, N.P. 2005. Molecular Cell 20:9–19. © 2005, with permission from Elsevier. Right panel, from the lab of Michele Pagano.

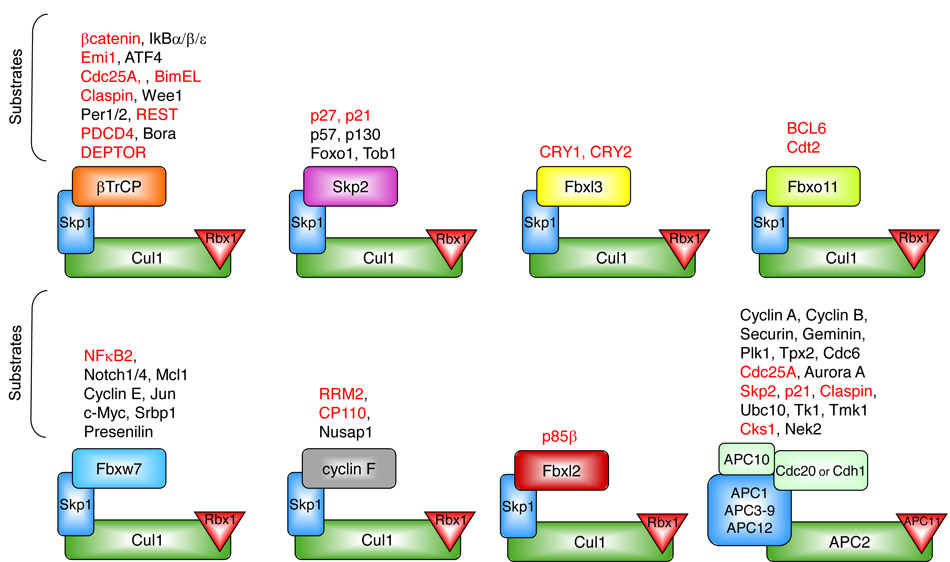

Figure 2: Orphan F-box proteins. Only a handful of human F-box proteins have established substrates, and the majority remain orphans. The figure shows some of the well-established substrates of SCF ubiquitin ligases and APC/C, an SCF-like ligase. Substrates in red were identified in the Pagano laboratory.
From the lab of Michele Pagano.

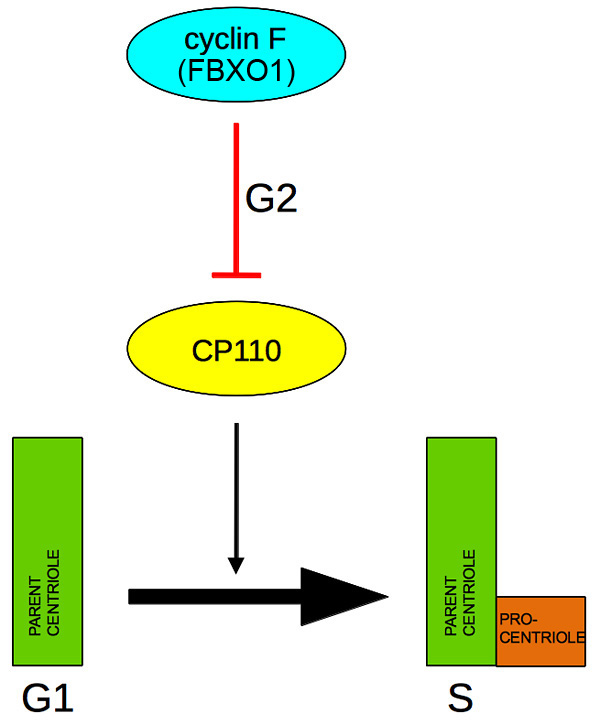

Figure 3: The F-box protein cyclin F (also known as FBXO1) limits centrosome duplication by targeting CP110 for proteolysis in G2, thereby avoiding chromosome instability.
From D'Angiolella, V., Donato, V., Vijayakumar, S., Saraf, A., Florens, L., Washburn, M., Dynlact, B., and Pagano, M. 2010. Nature 466:138–142.
Figure 4: The F-box protein cyclin F (also known as FBXO1) maintains balanced dNTP pools by targeting RRM2 (ribonucleotide reductase member 2) for proteolysis in G2, thereby avoiding genome instability. In response to genotoxic stress, cyclin F is degraded and RRM2 can accumulate to allow efficient DNA repair.
From D'Angiolella, V., Donato, V., Forrester, F.M., Jeong, Y.T., Pellacani, C., Kudo, Y., Saraf, A., Florens, L., Washburn, M.P., and Pagano, M. 2012. Cell 149:1023–1034. © 2012 Elsevier Inc.
Figure 5: APC/CCdh1 and βTrCP control multiple aspects of the G2 checkpoint. Black signifies activated forms of the respective proteins. Blue indicates inactive forms or degraded proteins. Red lines indicate mechanisms identified by the Pagano laboratory.
Adapted from Bassermann, F., Guardavaccaro, D., Frescas, D., Busino, L., Peschiaroli, A., and Pagano, M. 2008. Cell 134:256–267; and Peschiaroli, A., Dorrello, N.V., Guardavaccaro, D., Venere, M., Halazonetis, T., Sherman, N.E., and Pagano, M. 2006. Molecular Cell 23:319–329.

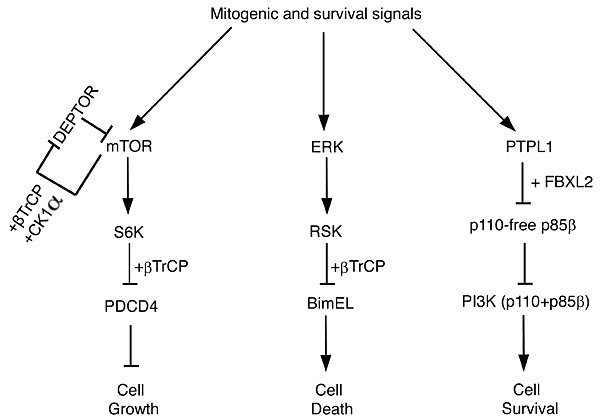

Figure 6: βTrCP facilitates efficient protein synthesis and cell growth. In response to mitogens and survival factors, βTrCP facilitates efficient protein synthesis and cell growth in cooperation with the mTOR‐S6K pathway (by inducing the proteolysis of PDCD4 and DEPTOR) and inhibits apoptosis in cooperation with the ERK-RSK pathway (by targeting BimEL for degradation). Moreover, PTPL1-mediated dephosphorylation of p85β induces its FBXL2-dependent degradation and prevents the inhibition of PI3K, resulting in cell survival.
From the lab of Michele Pagano. See also Dorrello, N.V., Peschiaroli, A., Guardavaccaro, D., Colburn, N.H., Sherman, N.E., and Pagano, M. 2006. Science 314:467-471. See also Dehan, E., Bassermann, F., Guardavaccaro, D., Vasiliver-Shamis, G., Cohen, M., Lowes, K.N., Dustin, M., Huang, D.C., Taunton, J., and Pagano, M. 2009. Molecular Cell 33:109-116. See also Duan, S., Skaar, J.R., Kuchay, S., Toschi, A., Kanarek, N., Ben-Neriah, Y., and Pagano, M. 2011.Molecular Cell 44:317-324. See also Kuchay S., Duan S., Schenkein E., Peschiaroli A., Saraf A., Florens L., Washburn M., and Pagano M. 2013. Nature Cell Biology 15:472-480.

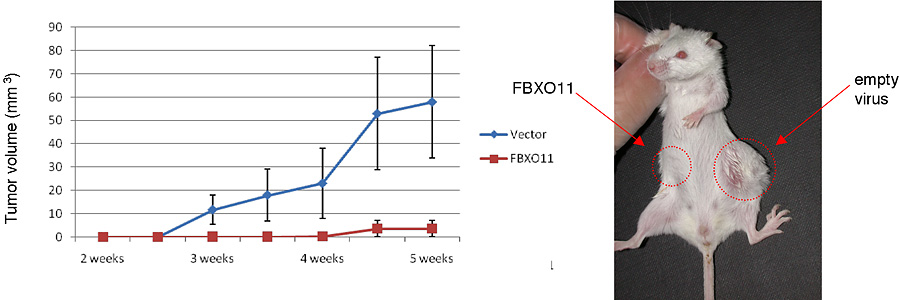

Figure 7: The F-box protein FBXO11 controls the cellular abundance of the proto-oncoprotein BCL6. Mutations or deletions at the FBXO11 locus lead to BCL6 stabilization and contribute to lymphomagenesis. The figure shows that expression of FBXO11 results in decreased growth of FBXO11-null cells implanted subcutaneously.
From Duan, S., Cermak, L., Pagan, J.K., Rossi, M., Martinengo, C., di Celle, P.F., Chapuy, B., Shipp, M., Chiarle, R., and Pagano M. 2012. Nature 481:90–93.

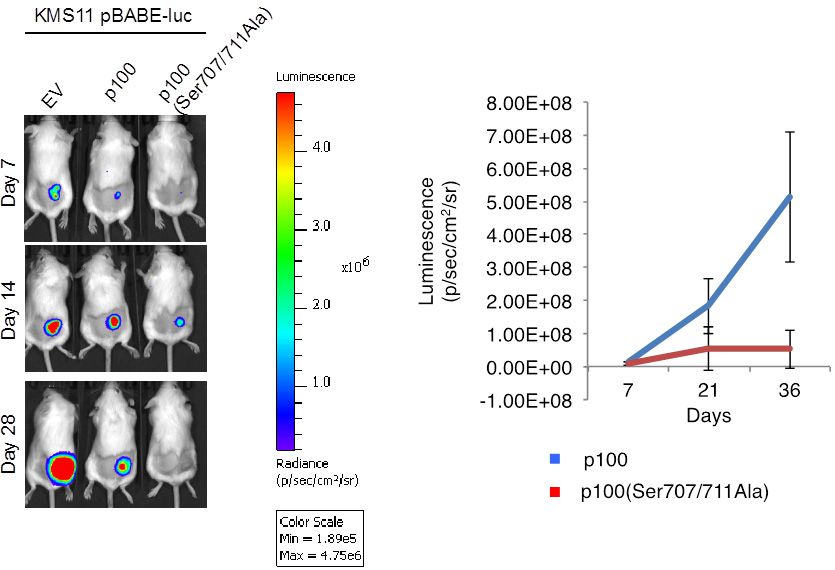

Figure 8: Inhibition of p100 degradation induces cell death in B cell neoplasms. Expression of stable p100 results in decreased growth of multiple myeloma cells implanted subcutaneously.
From Busino, L., Millman, S.E., Scotto, L., Kyratsous, C.A., Basrur, V., O’Connor, O., Hoffmann, A., Elenitoba-Johnson, K.S., and Pagano, M. 2012. Nature Cell Biology 14:375–385.
