Figure 1: Cluster of superficial sensory hair cells at the surface of the skin of a larval zebrafish. Such cells are present in fish and amphibians and detect movement of water and other low-frequency stimuli.
Cover image, Neuron, February 1998. © 1998, with permission from Elsevier. Photo by Jürgen Berger (Max Planck Institute for Developmental Biology, Tübingen). See also Nicolson, T., Rüsch, A., Friedrich, R.W., Granato, M., Ruppersberg, J.P., and Nüsslein-Volhard, C. 1998. Neuron 20:271–283.
Figure 2: The hair-cell ribbon synapse. Left panel: electron micrograph of two ribbon bodies surrounded by synaptic vesicles in a zebrafish hair cell (5 days postfertilization). Right panel: schematic of a ribbon synapse, indicating the presence of L-type calcium channels below the ribbon body. Activation of these voltage-gated channels leads to calcium influx and subsequent exocytosis. Upon fusion, vesicles release glutamate, and Vglut3 transporters are required for synaptic transmission.
The Nicolson lab.

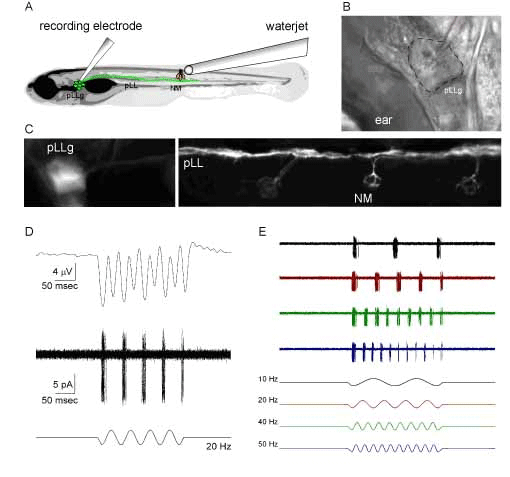

Figure 3: Recording configuration for posterior lateral line ganglion (pLLg) activity in response to mechanical stimulation of lateral line hair cells. A: Cartoon depicting the location of the water jet and recording pipette. Green, the approximate locations of pLLg; brown, a group of lateral line hair cells.
B: DIC image of pLLg (dashed line), with a recording pipette (outlined in red) pressed upon a cell body. Each soma is 10–15 µm in diameter.
C: Images of a neuroD:GFP transgenic larva (line generated by Alex Nechiporuk, Oregon Health & Science University). Left panel: GFP fluorescence of pLLg with incoming afferent fibers. Right panel: lateral line afferent fibers contacting three neuromasts.
D: Upper trace, 2f microphonic potentials in hair cells mechanically stimulated at 20 Hz. Lower trace, postsynaptic action currents recorded from a single soma in response to the same stimulus frequency.
E: Action currents from a single postsynaptic neuron in response to hair cells mechanically stimulated at multiple frequencies.
